HW-35
€ 2075,- *
* All prices on this website are non-binding suggested retail prices.
HW-35
List price
€ 2075,- *
* All prices on this website are non-binding suggested retail prices.
Click thumbnails to view image

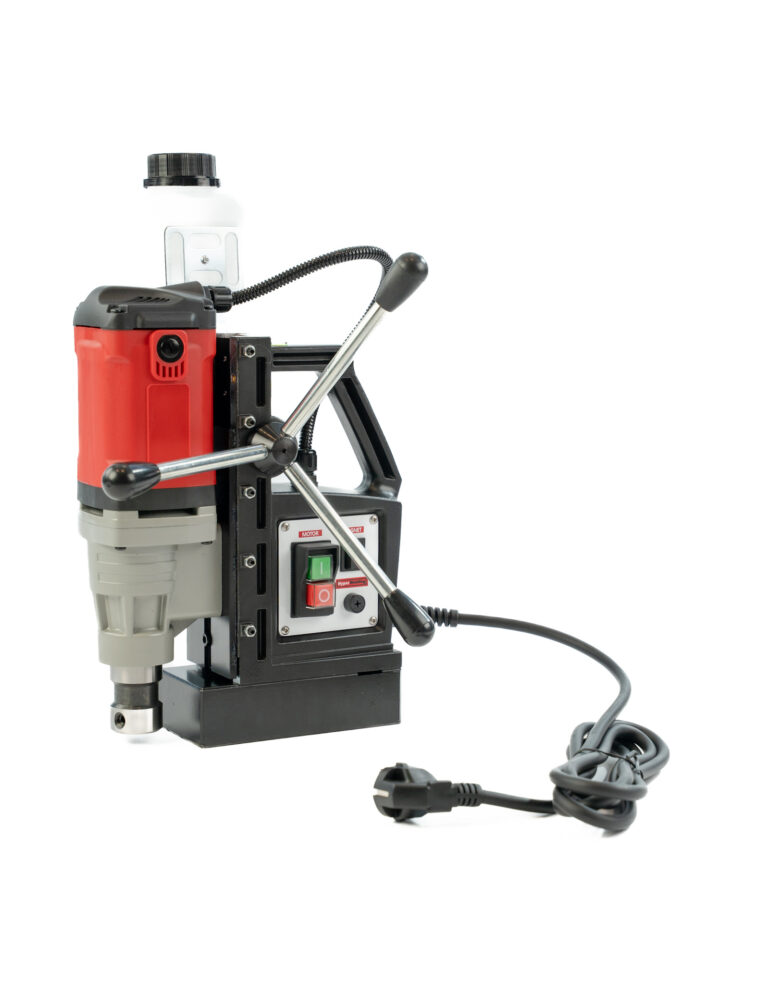

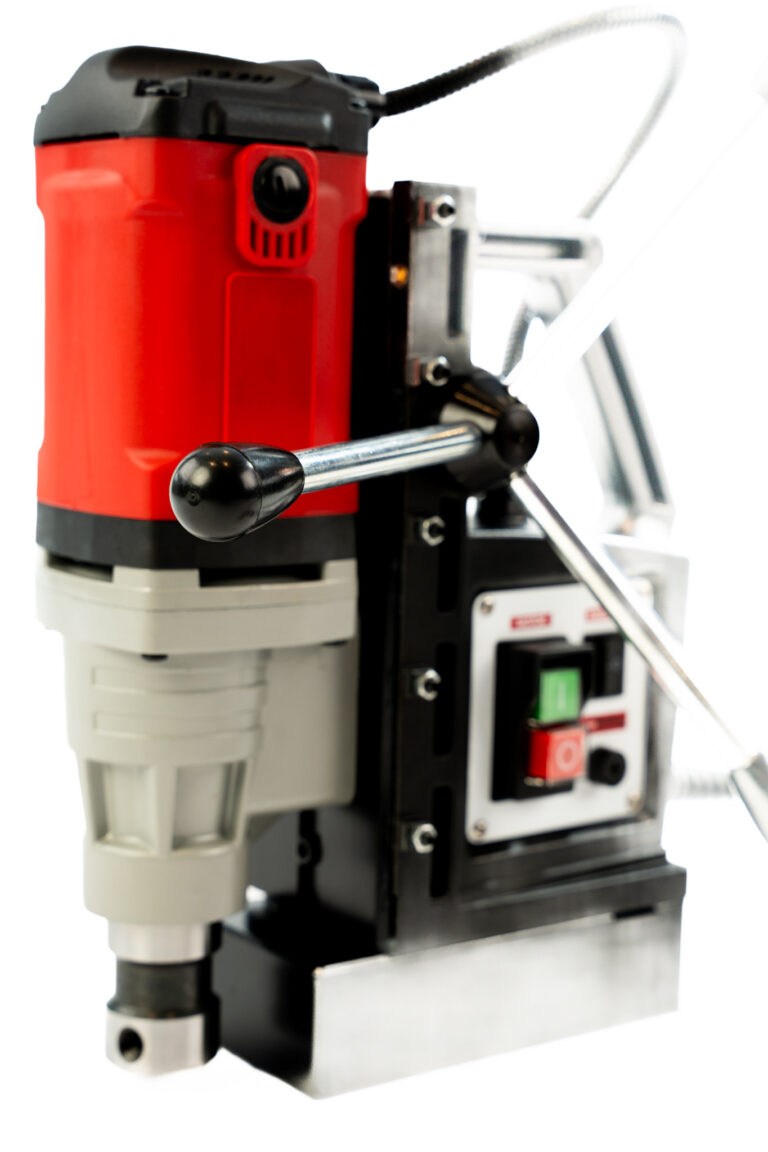

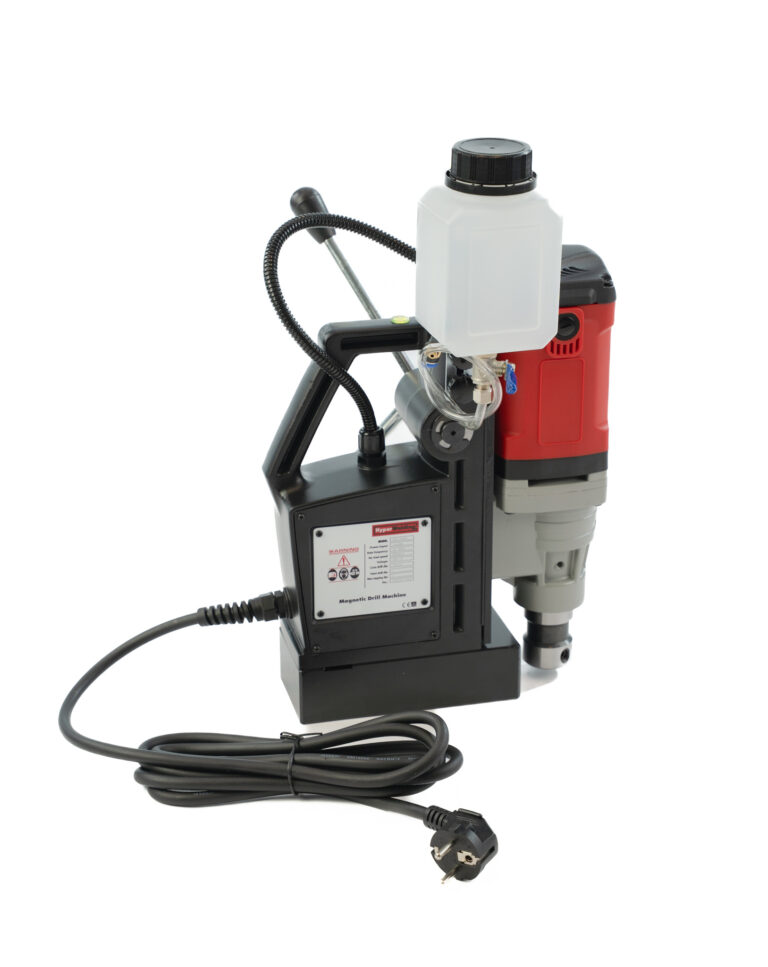

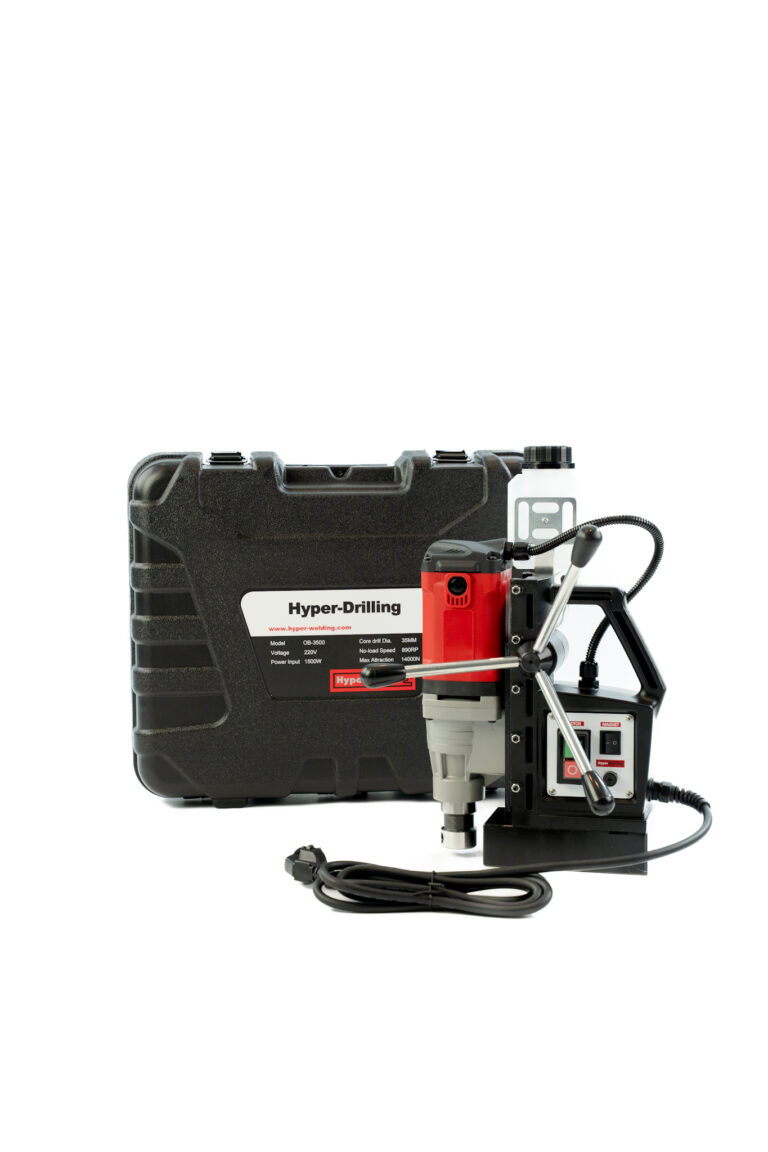

Hyper Welding HW 35 magnetic drilling machine
This magnetic drilling machine is very suitable for fast and accurate drilling of holes with a maximum diameter of 35mm.
Specifications
ANNULAR CUTTERS
Ø 12 – 35 mm
TWIST DRILLS
Ø 1 – 13 mm
COUNTERSINKING
Ø 10 – 35 mm
LENGTH
265 mm
WIDTH
175 mm
HEIGHT
293 – 383 mm
STROKE
90 mm
WEIGHT
8,5 kg
MAGNET (L x W x H)
160 x 81 x 36 mm
MAGNETIC FORCE
1200 kg
MOTOR POWER
900 W
TOTAL POWER
950 W
SPEED (no load)
775 rpm
SPEED (loaded)
775 rpm
SPINDLE
19,05 mm (3/4") Weldon
POWER SOURCE
110 – 120V AC / 60 Hz - 220 – 240V AC / 50 – 60 Hz
