MIG-250

€ 3250,-

HyperWelding MIG-250
HyperWelding MIG-250
HyperWelding MIG-250
HyperWelding MIG-250

MIG-250

List price

 € 3250,-

Click thumbnails to view image
HyperWelding MIG-250
HyperWelding MIG-250
HyperWelding MIG-250
HyperWelding MIG-250

Hyper Welding MIG-250

Microprocessor controlled MIG/MAG/MMA/TIG Lift inverter multi-process welding machine

Flexibility of use and different materials welded (steel, stainless steel and aluminium) or braze-welded (galvanized sheet), allow for wide range of applications.

The quick SYNERGIC regulation of the welding parameters and the ONE TOUCH LCD SYNERGY technology make this product easy to use

MIG Torch, TIG TORCH

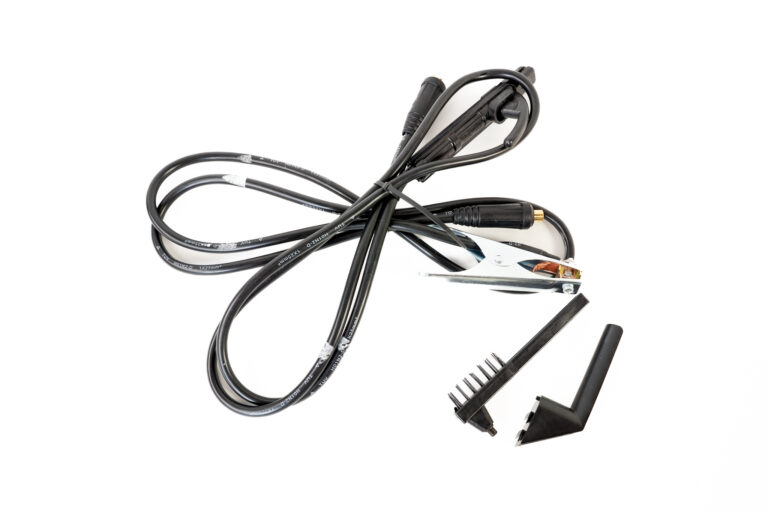

Electrode holder with 3m Alu. cable; Earth clamp with 3m Alu. cable

1)17 synergy curves available

2)Visualization on LCD display of voltage, current, welding speed

3)Regulation of post gas, current down slope, burn-back time

4)Choice of 2/4 times, spot operation

5)Arc force, hot start, anti-stick devices

6)Thermostatic, overvoltage, undervoltage, overcurrent protections

Specifications

Input voltage
3PH 230V
Mains frequency
50/60 HZ
Current range
20-300A
Max current
300A@60%
DC current
205A
Max no load voltage
63V
Max absorbed current
15A
Absorbed current at 60%
6.5 KW
Power factor
0.9
D. Useable electrodes in dc
1.6 - 6 mm
Steel welding wire diameter
0.6 - 1.2 mm
Inox welding wire diameter
0.8 - 1.2 mm
Aluminium welding wire diam.
0.8 - 1.2 mm
Flux cored welding wire diam.
0.8 - 1.2 mm
Brazing wire diam.
0.8 - 1.2 mm
Protection degree
IP23
