MMA-160

€ 695,-

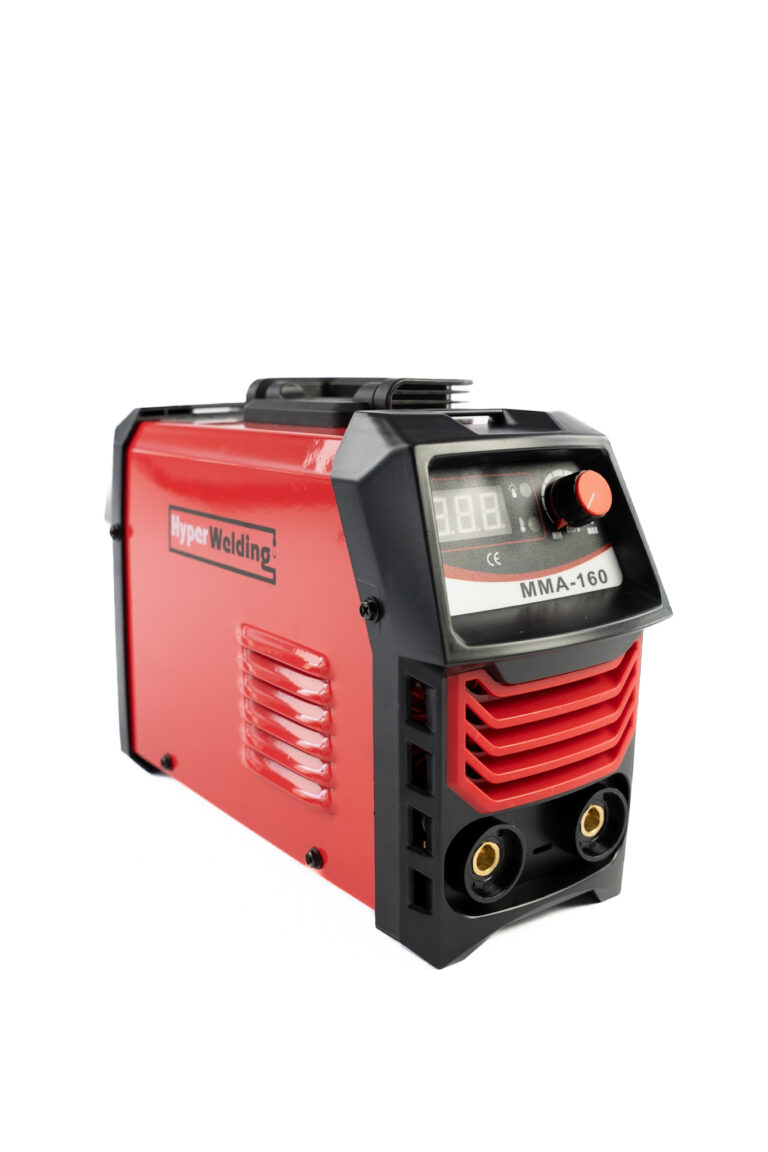

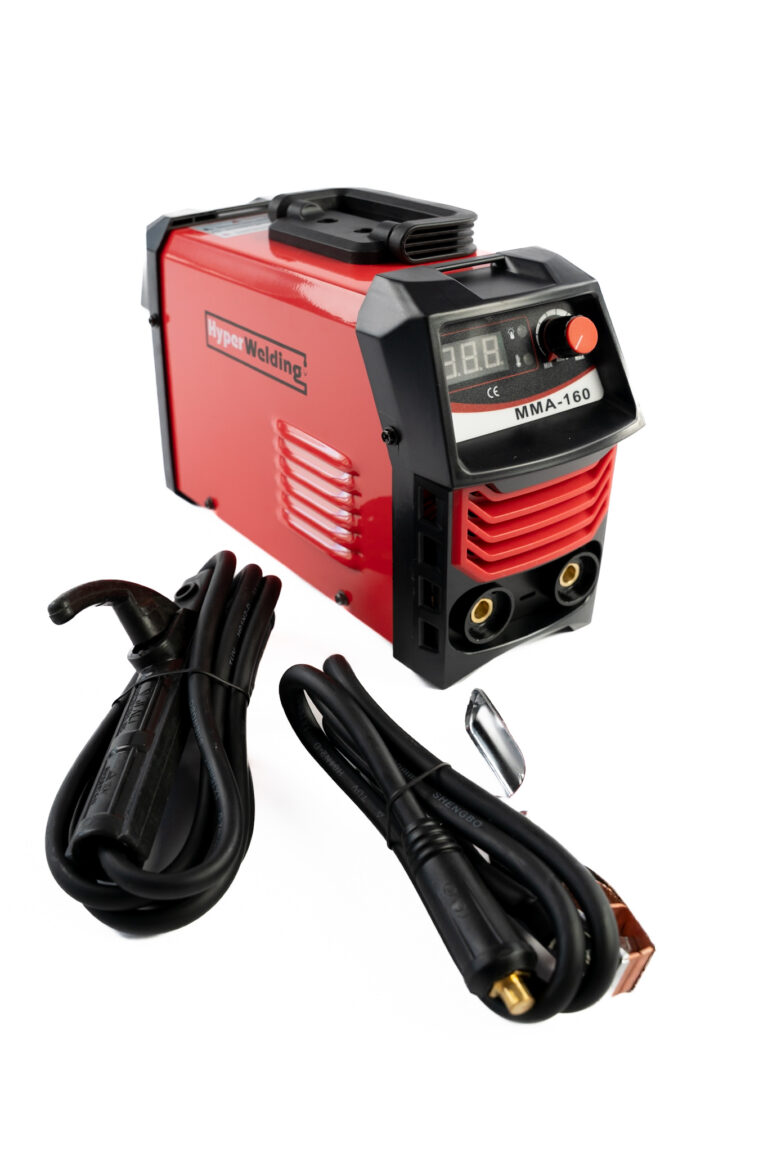

Hyper Welding MMA-160
Hyper Welding MMA-160

MMA-160

List price

 € 695,-

Click thumbnails to view image
Hyper Welding MMA-160
Hyper Welding MMA-160

Hyper Welding MMA-160

Advanced IGBT inverter technology is adopted, with frequency up to 45khz and fast dynamic response

The digital meter is adopted, which is beautiful and atmospheric, and enhances the reliability of the machine;

It has the functions of over-current and over-heat protection, which is safe, reliable and stable in quality;

It is suitable for a wide range of network voltage, can work perfectly within 187 ~ 253v, and the current output is stable;

Perfect manual welding function with Arc Force and hot start, easy arc starting, small spatter and good weld formation;

Strong adaptability to the environment and can work in the environment of – 25 ℃ – 50 ℃;

Energy saving, small size, light weight, easy to carry;

Suitable for medium and thin plate welding of carbon steel, alloy steel and black metal, φ 3.2 welding rod can be welded for a long time.

Documents

 MMA-160 User Manual

Specifications

Input voltage
230
Rated input capacity(KVA)
5.5
No-load voltage(V)
65
Output current range
20-160amps
Real Max current
160amps
Usable electrode
Ø2.0-4.0mm
Welding performance
Continuously weld Ø3.2mm electrode,it can be welded Ø4.0mm electrode
Duty cycle(%)
45-60%
Efficiency(%)
80
Power factor
0.9
Insulation class
H
Protection class of case
IP21
Overall dimension(CM)
38 x 25.5 x 26
