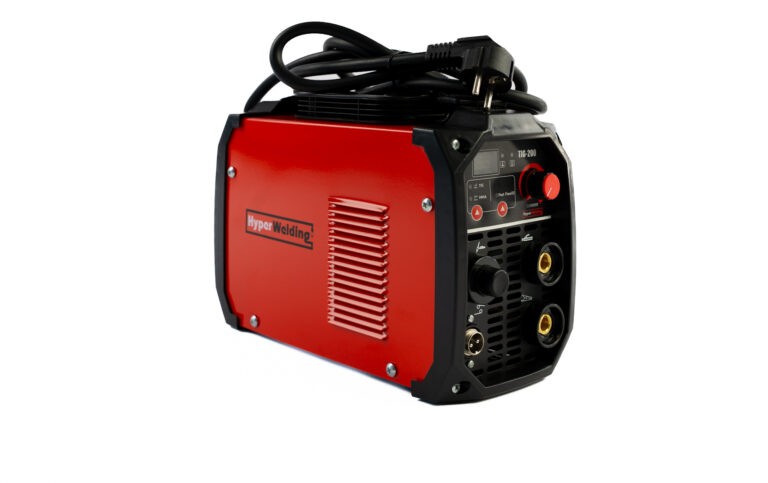

TIG-200

€ 2840,-

Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200

TIG-200

List price

 € 2840,-

Click thumbnails to view image
Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200
Hyper Welding TIG-200

Hyper Welding TIG-200

Adopt advanced IGBT inverter technology, with frequency up to 45khz and fast dynamic response;

With MMA welding function, one machine for two purposes, with higher cost performance;

The digital meter is adopted, which is beautiful and atmospheric, and enhances the reliability of the machine;

It has the functions of over-current and over-heat protection, which is safe, reliable and stable in quality;

Excellent High frequency arc starting;

the current adjustment is sensitive and accurate.

The new gas valve is adopted, which greatly saves the gas;

It is suitable for a wide range of network voltage, can work perfectly within 187 ~ 253v, and the current output is stable;

Energy saving, small size, light weight, easy to carry, suitable for outdoor site construction:

Extremely flexible use for welding materials such as: steel, alloys and iron

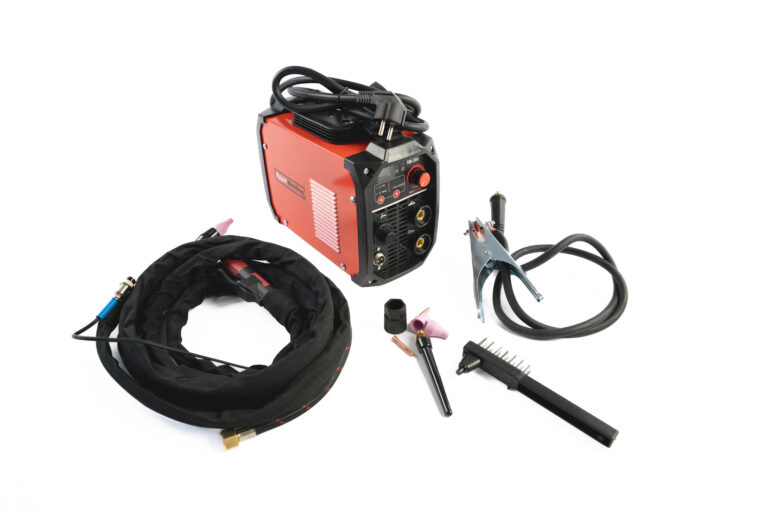

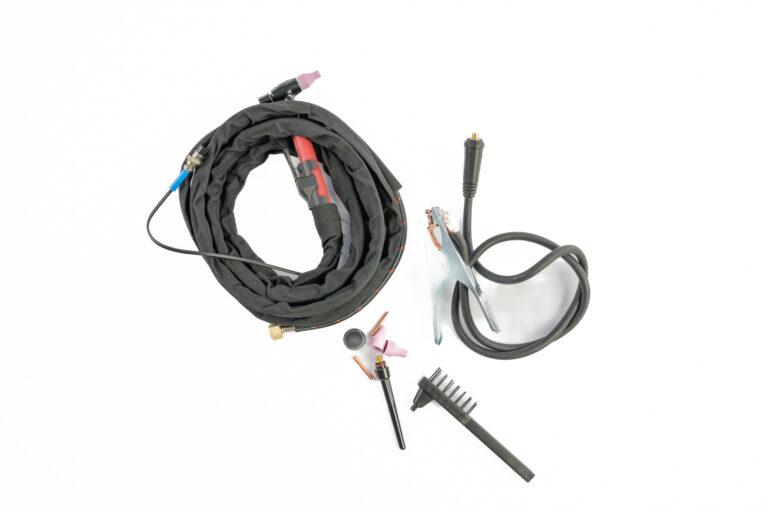

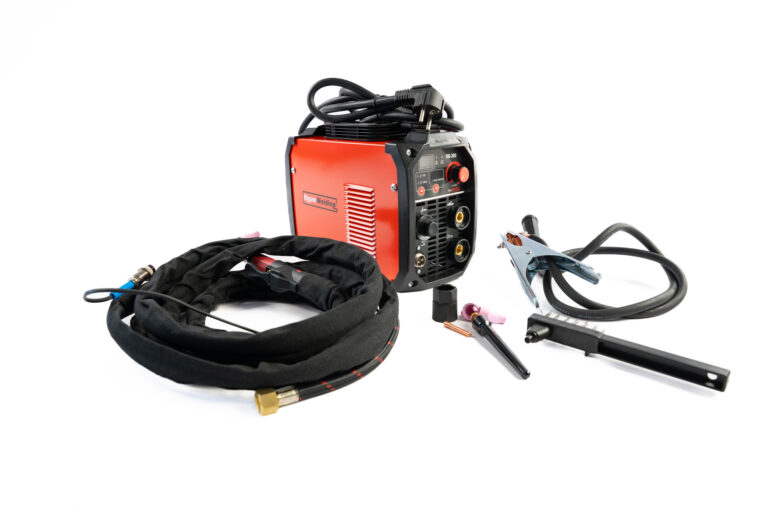

Electrode holder with 1.8m Alu. cable; Earth clamp with 1.2m Alu. cable; Brush, Helmet

Documents

 TIG-200 User Manual

Specifications

Input voltage
230
Rated input capacity (KVA)
7.2
No-load voltage (V)
55
Output current range
20 - 200 amps
Real Max current
190 amps
Usable electrode
Ø1.6-5.0mm
Duty cycle(%)
45-60%
Efficiency(%)
80
Insulation class
H
Overall dimension (CM)
50 x 31 x 28
